Plants Pro | 8000GPD RO HD System (Chinese)
R76,200.00

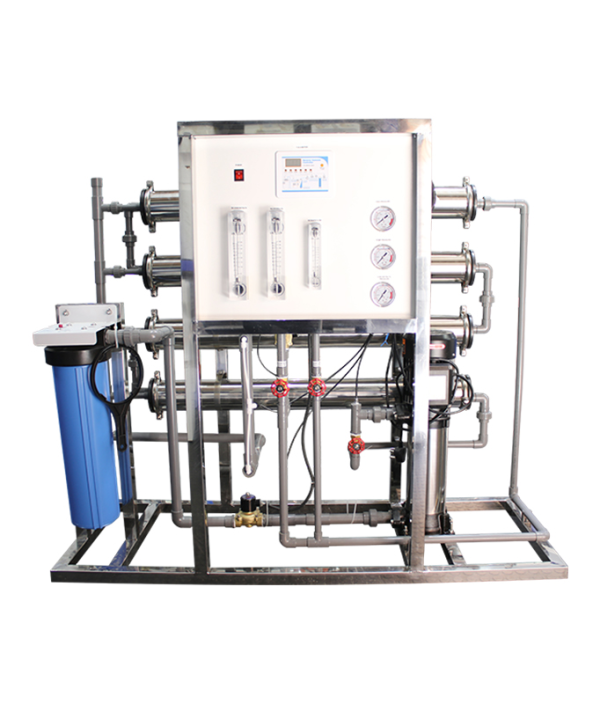

8000GPD RO HD System (Chinese)
We specialize in providing high-quality RO System Controllers from Taiwan, ensuring exceptional reliability and adherence to strict quality specifications.
Our RO System Controllers are built to be robust and durable, designed for long-term, efficient performance. Each controller is meticulously crafted to precise dimensions and thoroughly tested to meet rigorous standards, giving you confidence in its quality and dependability.
The RO System Controller features an adjustable switch and comes with fully equipped and customizable options for ease of use. Additionally, each unit undergoes factory testing and is backed by a 1-year limited warranty. These controllers help maintain essential natural minerals while delivering clean, pure drinking water and are easy to control and install.
Available Options
RO membranes available with brands of Filmtec, Hydranautics, Vontron, and Toray
FRP membrane vessel
Grundfos multistage pump
CNP multistage pump
Concentrate recycling flow meter
Provision for CIP
Standard Features Of The Reverse Osmosis System
RO micro-computer controller with permeate TDS readout
300PSI stainless steel membrane housing+PE end caps
LPE multistage pump for 1500-8000GPD
5-micron sediment pre-filter x 2 in series
Rotameters for permeate and concentrate stream
Pressure gauges for prefilter feed and Reverse Osmosis feed
Low-pressure switch
SS316 concentrate needle valve
Concentrate recycling valve (without flow meter)
The electro-plated SS304 skid frame
Models RA 8000
Feed Water TDS <1500ppm
Recovery Rate* 50-75%
Vessel Array 1:1:1:1
Vessel Size 4040 x 4
Permeate Flow Rate (GPM/lpm)** 4.2/15.8
Feed Connection 3/4″ FNPT
Permeate Connection 1/2″
Concentrate Connection 1/2″
Flush Connection 1/2″
Pump type & Motor HP Multistage 2HP
Gross Dimension (cm) 69X63X147
Gross Weight (kg) 100
* Minimum recovery rate is calculated based on no concentrate recirculation, it is possible to increase the overall recovery rate by increasing the concentrate circulation flow.
** Permeate flow rate can vary depending on the type of membrane, raw water quality, and recovery rate.
