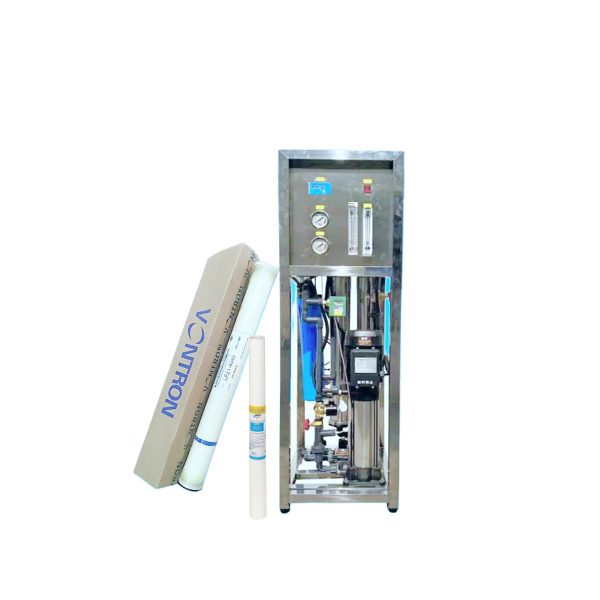

Plants Pro | 500 LPH RO System – 4000 GPD RO
R29,000.00
The PLANTS PRO 4000 GPD Industrial reverse osmosis system is a robust piece of machinery that, when properly maintained, can provide reliable service for many years. These systems are included in our extensive selection of reverse osmosis units, specifically engineered to function with fresh and brackish feedwaters that have total dissolved solids (TDS) levels below 1,500 ppm. Various models are offered, featuring permeate outputs ranging from 150 to 1,000 liters per hour, as detailed in the specifications.
The dimensions of the rack have been modified from the original size of 38cm by 38cm to a more compact 25cm by 25cm. Consequently, the dimensions of the RO main host can now achieve 50cm by 60cm by 130cm, representing a reduction of 40% compared to existing water treatment systems available in the market. Additionally, we have introduced more compact spacers for various parts and components, resulting in smaller racks that utilize less material. This redesign of the frame and component structure has led to material savings and reduced costs compared to traditional products. This RO water plant is particularly advantageous for customers who are price-sensitive and seek to enter new markets with lower investment costs.
A water analysis report is very important as it determines the pretreatment setup needed to be installed before the reverse osmosis system. As you can see on the sketch above, the pretreatment consists of a Sand/Glass Filter, Carbon Filter, and Antiscalant Dosing system.
Pretreatment setups can consist of even more items installed before the reverse osmosis system. Below is a list of items that could be required as per the water analysis report.
1. Chlorine Dosing System, 2. Ultrafiltration System, 3. Dmi-65 Iron Removal Media Filter System, 4. Ozone Generator, 5. Flocculant System
Once all the equipment has been purchased, you will need a qualified technician to put together the complete setup. We have our own qualified technicians trained by the manufacturers of the equipment to do the installation running of the setup. Should you require us to install the system for you, a quote with the installation fee will be sent to you by the sales agent in charge.
Training can also be offered to the guys you want to be the ones installing your setup instead of our technicians.
It is essential to be aware of the following information when contemplating the purchase of this system. For optimal performance, this system necessitates a pretreatment setup. The accompanying sketch illustrates a fundamental pretreatment configuration that includes the reverse osmosis system. However, it is important to note that the effectiveness of this pretreatment setup is not assured unless it is endorsed by a sales representative based on the laboratory water analysis report.
STRUCTURE:FLOW RATE
The redesign of the product’s structure does not compromise the performance of the industrial Reverse Osmosis water plant, allowing it to sustain the same levels of salt rejection, service life, and recovery rate as traditional models. This Reverse Osmosis system can achieve a salt rejection rate of 99%, ensuring the purity of the produced water is not a concern. The quality of the RO membrane is crucial for maintaining water quality, and we utilize the globally recognized brands DOW and VONTRON to guarantee consistent water quality, with a service life of 2 to 3 years. The RO membrane effectively eliminates heavy metals, metal ions, and bacterial viruses, making the water safe for direct consumption. The recovery rate indicates the ratio of purified water to wastewater, typically set between 45% and 50%. However, this recovery rate can be adjusted as needed, thanks to the regulating valve installed on the concentrated water pipeline.
The flow rate of this RO water plant is 500lph. After a large number of consumers surveyed, 500lph is the water mostly used by families or villas. It will not cause excessive flow to lead to energy consumption and insufficient water consumption due to too little flow. And this RO water plant redesigned its appearance, the manufacturing cost is lower and the selling price is lower. This cheap RO water plant is especially popular in Africa. We have produced hundreds of machines and sold them to a dealer to open up the market. At the same time, we will equip the RO host with some parts, you can get the goods in 7 days at the earliest. If you have any questions, please feel free to ask us.
Besides focusing on quality, a device needs to pay more attention to the dimension of the device and reduce the space for use. The dimension is large in the market and the volume can reach 65.5*55*131CM.
Available Options
RO membranes are available with brands of Filmtec, Hydranautics, Vontron, and Toray FRP membrane vessel
Grundfos multistage pump
CNP multistage pump
Concentrate recycling flow meter Provision for CI
PRODUCT DETAILS
Precision filter: Add a filter cartridge to protect the membrane and extend the membrane service life
| S/N | Name | Material | Service life |
| 1 | Precision filter | PP, CTO | 3-6 months |
| 2 | RO membrane | Vontron/Dow/CSM etc; | 2-3 years |
Specification
Feed Water TDS: <1500ppm
Recovery Rate: 34-75%
Vessel Array: 1:1
Vessel Size: 4040 x 2
Permeate Flow Rate (GPD/LPM): 2.1/7.9 Feed Connection: 3/4” FNPT
Permeate Connection: 1/2” Concentrate Connection: 1/2”
Flush Connection: 1/2”
Pump Type & Motor HP: Multistage 2HP
Gross Dimension (cm): 69 x 63 x 147
Gross Weight (kg): 88
Standard Features Of The Industrial Reverse Osmosis System
RO micro-computer controller with permeate TDS readout
300PSI stainless steel membrane housing+PE end caps
SHIMGE PLD multistage pump for 1500-6000GPD
5-micron sediment pre-filter
Rotameters for permeate and concentrate stream
Pressure gauges for prefilter feed and RO feed
Low-pressure switch
SS316 concentrate needle valve
Concentrate recycling valve (without flow meter)
The electro-plated SS304 skid frame
From packaged systems to custom-engineered Reverse Osmosis systems, we can take care of your needs.
Benefits Of The Industrial Reverse Osmosis System
Specialized Micro-Computer Controller
Fully Equipped and Customisable
Factory Tested and Preserved
1-Year Limited Warranty
Manufactured in China
