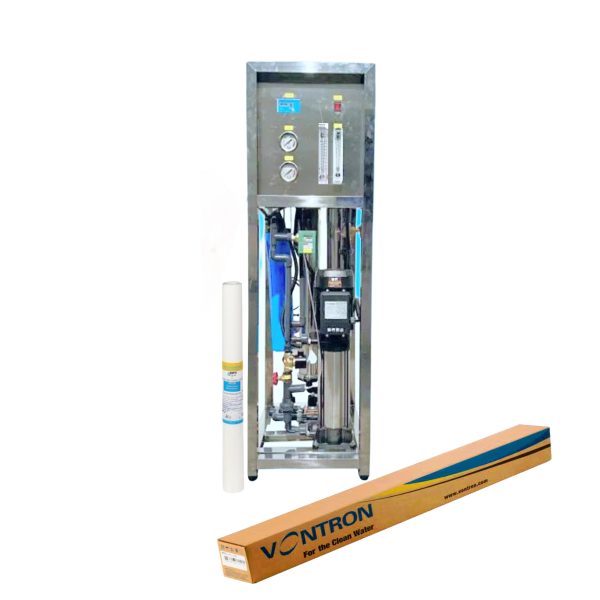

Plants Pro | 2000 GPD RO System – 250 LPH

PLEASE NOTE!
When you consider purchasing this system, you need to know the following information as it is very important. This system requires a pretreatment set up for it to perform like it was designed to. The pretreatment setup is not guaranteed to work unless recommended by a sales agent according to the water analysis report from a lab.
A water analysis report is very important as it determines the pretreatment setup needed to be installed before the reverse osmosis system. As you can see on the sketch above, the pretreatment consists of a Sand/Glass Filter, Carbon Filter, and Antiscalant Dosing system.

Pretreatment setups can consist of even more items installed before the reverse osmosis system. Below is a list of items that could be required as per the water analysis report.
1. Chlorine Dosing System, 2. Ultrafiltration System, 3. Dmi-65 Iron Removal Media Filter System, 4. Ozone Generator, 5. Flocculant System

Once all the equipment has been purchased, you will need a qualified technician to put together the complete setup. We have our qualified technicians trained by the manufacturers of the equipment to do the installation running of the setup. Should you require us to install the system for you, a quote with the installation fee will be sent to you by the sales agent in charge.

Training can also be offered to the guys you want to be the ones installing your setup instead of our technicians.

Dimensions
Because the dimension is heavier than the weight where the freight is calculated according to the dimension and is more expensive. Puritech is sensitive to the need to respond to high freight charges and redesigned the Reverse Osmosis host.

STRUCTURE: FLOW RATE
Although the structure of the product is redesigned, it does not affect the performance of the industrial Reverse Osmosis water plant, and it can maintain the same salt rejection rate, service life, and recovery rate as conventional products. The Reverse Osmosis salt rate of this RO host can reach 99%, so we don’t have to worry about the purity of the water produced. The quality of the RO membrane plays a decisive role in water quality. We chose the internationally renowned brand DOW and VONTRON RO membrane to ensure the stability of water quality and its service life can be up to 2-3 years. RO membrane can effectively remove heavy metals, metal ions, bacterial viruses, etc. and the water can be directly consumed. The recovery rate is a value for adjusting the ratio of purified water to wastewater. The general recovery rate is set in the range of 45%-50%, but in fact, this recovery rate can also be adjusted by ourselves because we have set a regulating valve on the concentrated water pipeline.

The flow rate of this RO water plant is 250lph. After a large number of consumer surveys, 250lph is the water mostly used by families or villas. It will not cause the excessive flow to lead to energy consumption and insufficient water consumption due to too little flow. This RO water plant redesigned the appearance, the manufacturing cost is lower and the selling price is lower. This cheap RO water plant is especially popular in Africa. We have produced hundreds of machines and sold them to a dealer to open up the market. At the same time, we will equip the RO host with some parts, you can get the goods in 7 days at the earliest. If you have any questions, please feel free to ask us.

Besides focusing on quality, a device needs to pay more attention to the dimensions of the device and reduce the space for use. The dimension is large in the market and the volume can reach 65.5*55*131CM.

Description
Capacity :250L/H
Voltage: 220V/50Hz
Recovery :45%-50%
Desalination :96%-99%
Feed PH range: 3-10
Membrane Qty: 1pcs
Temp of raw water : 1-45℃
Feed Water Pressure : 1-5 bar
Raw water TDS : 0-1000ppm

Application raw water Tap water, city water, groundwater, well water RO Membrane Vontron, Dow Precision filter PP, CTO

Item name and Material
High-pressure pump : SS304
RO Membrane : Aromatic polyamide
Membrane housing :SUS
Flowmeter :plastic pipe
Conductivity meter : engineering plastics
Pressure switch : brass
Electronic control system : Air switch.electric relay.alternating current contractor.switch.LED
Control box : Mild steel /ss304
Frame: SUS304
Pipe : “2 inch，HP pipe：ss304 LP pipe：UPVC”

PRODUCT DETAILS
Precision filter: Add filter cartridge to protect the membrane and extend the membrane service life

SPECIFICATIONS
Capacity (GDP/LPH): 2000/300
Working Pressure (PSI/BAR): 150-200/10-14
Pre-Filtration: (20″ Filter Housing x2) + (20″ PP Cartridge 5u + 1u)
Booster Pump: Vertical Multistage Pump

MEMBRANE
Material: T.F.C with FRP outer wrap
Size + Unit: 4040 x 1

MEMBRANE HOUSING
Material: High-Pressure TRP end port type
Size x Unit: 4040 x 1

Flow Meters: Permeate/Concentrate
Pressure Gauges: Feedwater pressure/Booster pump outlet pressure gauge
Water Quality Indicator: T.D.S meter with LCD
Electrical Controls: Micro-computer control, overload breakers, LED indicators
Frame: Electro-polished stainless steel 304
Weight: 64KG

FEED WATER PARAMETERS
Turbidity (SD): <5
T.D.S.: <2000 ppm Temperature: +5 to 40 oC
Free Chlorine: 0 ppm
pH: 3-11
Iron: <0.01 ppm
